3D prototyping

Image 2

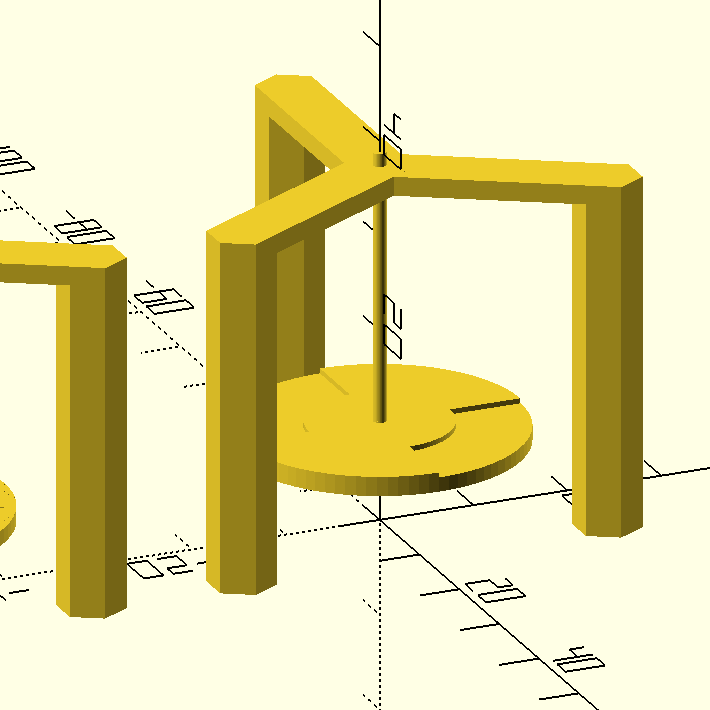

openSCAD design for pendulums with $\ell=-1,0,+1$ (left to right)
Image 2

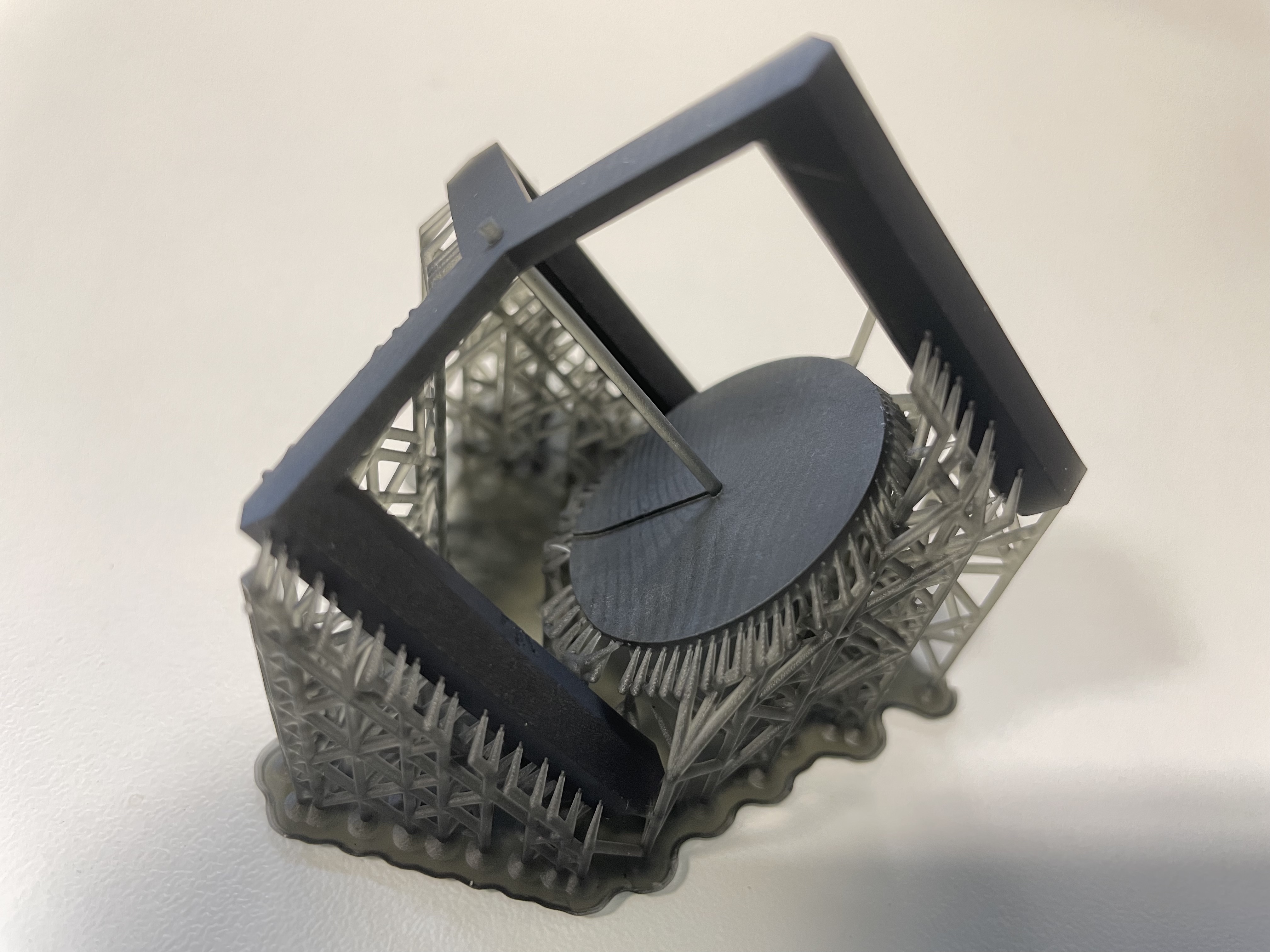

1:500 scale model printed with Prusa SL1. Thanks to Bernard Tregon
Image 2

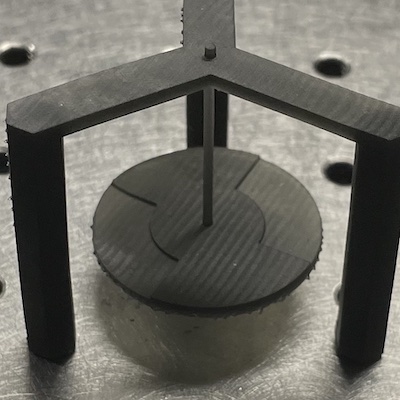

1:500 scale model of $\ell=-1,0,+1$ pendulums (Prusa SL1)
Image 2

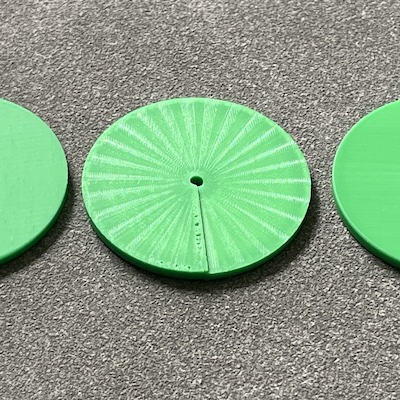

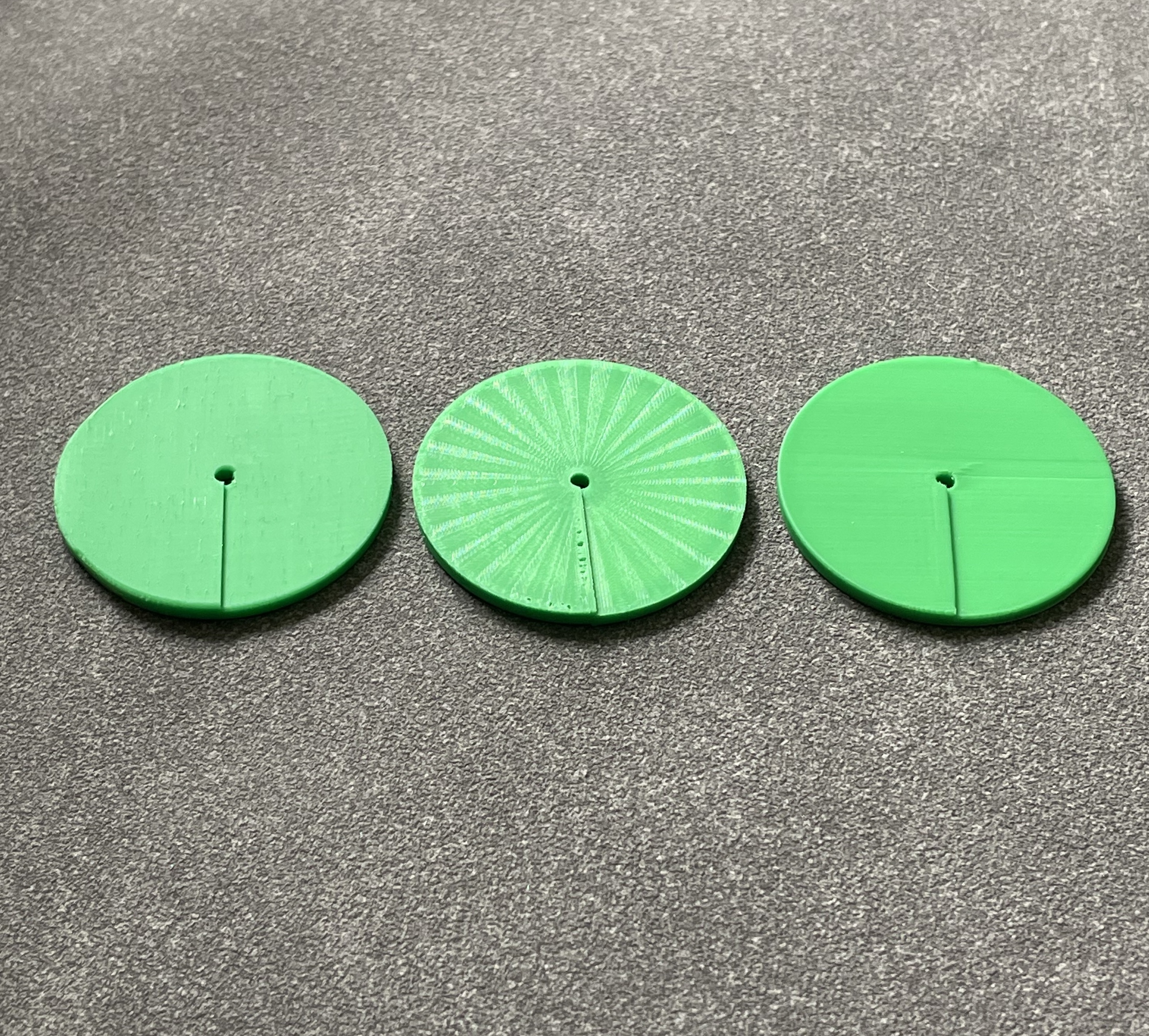

1:500 scale disks for $\ell=-1$ pendulum printed with Bambu Lab PS1 at $90^{\circ}$, $0^{\circ}$, and $45^{\circ}$ (0.2, 0.01, and 0.2mm layer height). Thanks to Ivan Gusachenko
Image 2

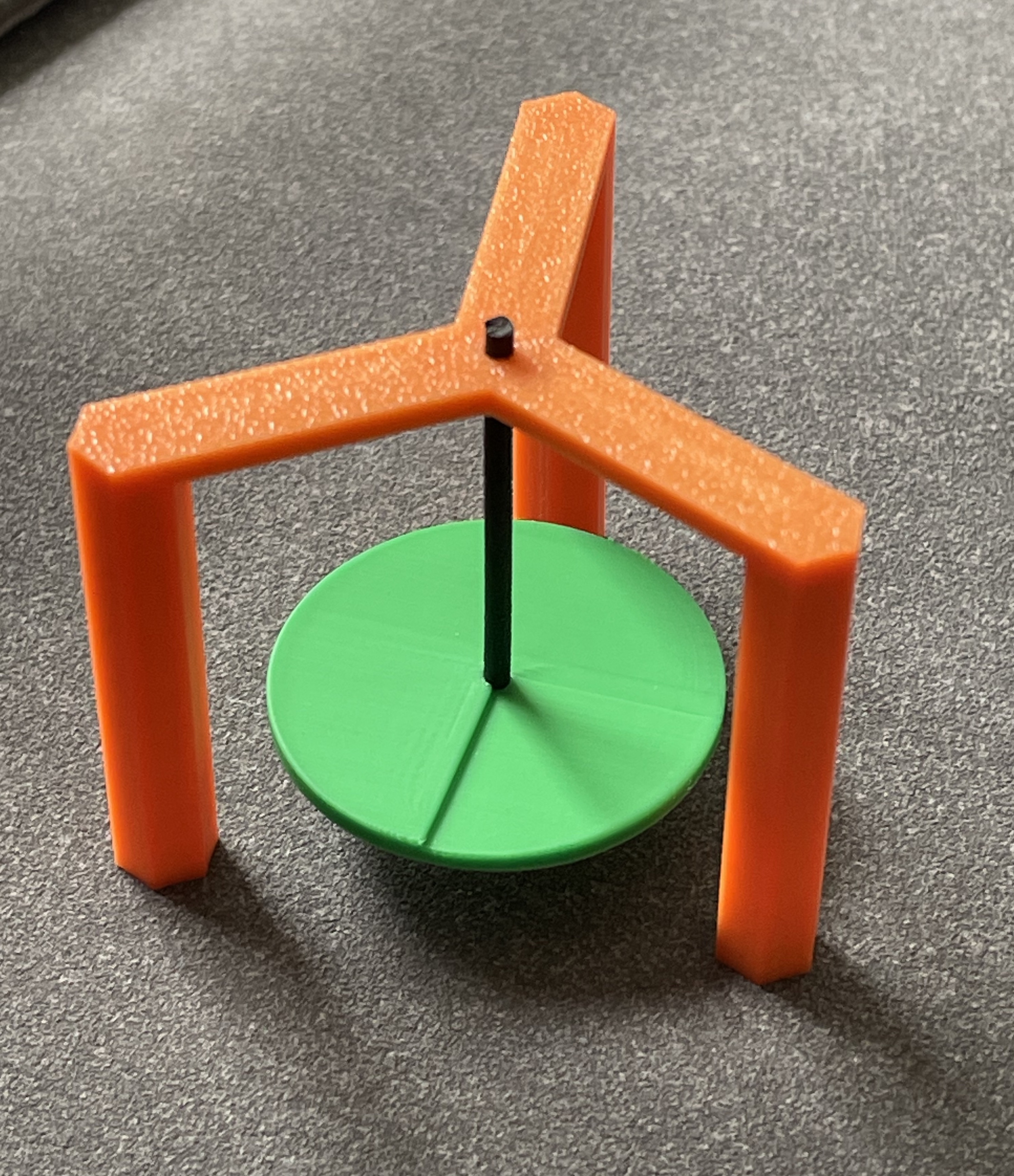

1:500 scale model of $\ell=-1$ pendulum (Bambu Lab PS1). The wire is a piece of filament

Sample fabrication (VULRC, Lithuania)

Image 1

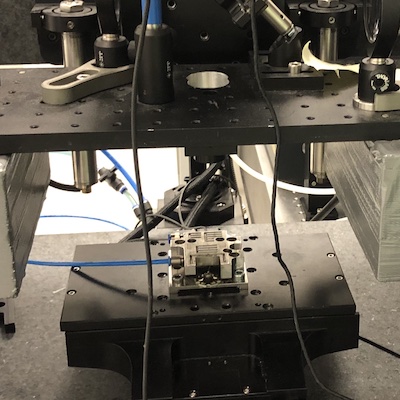

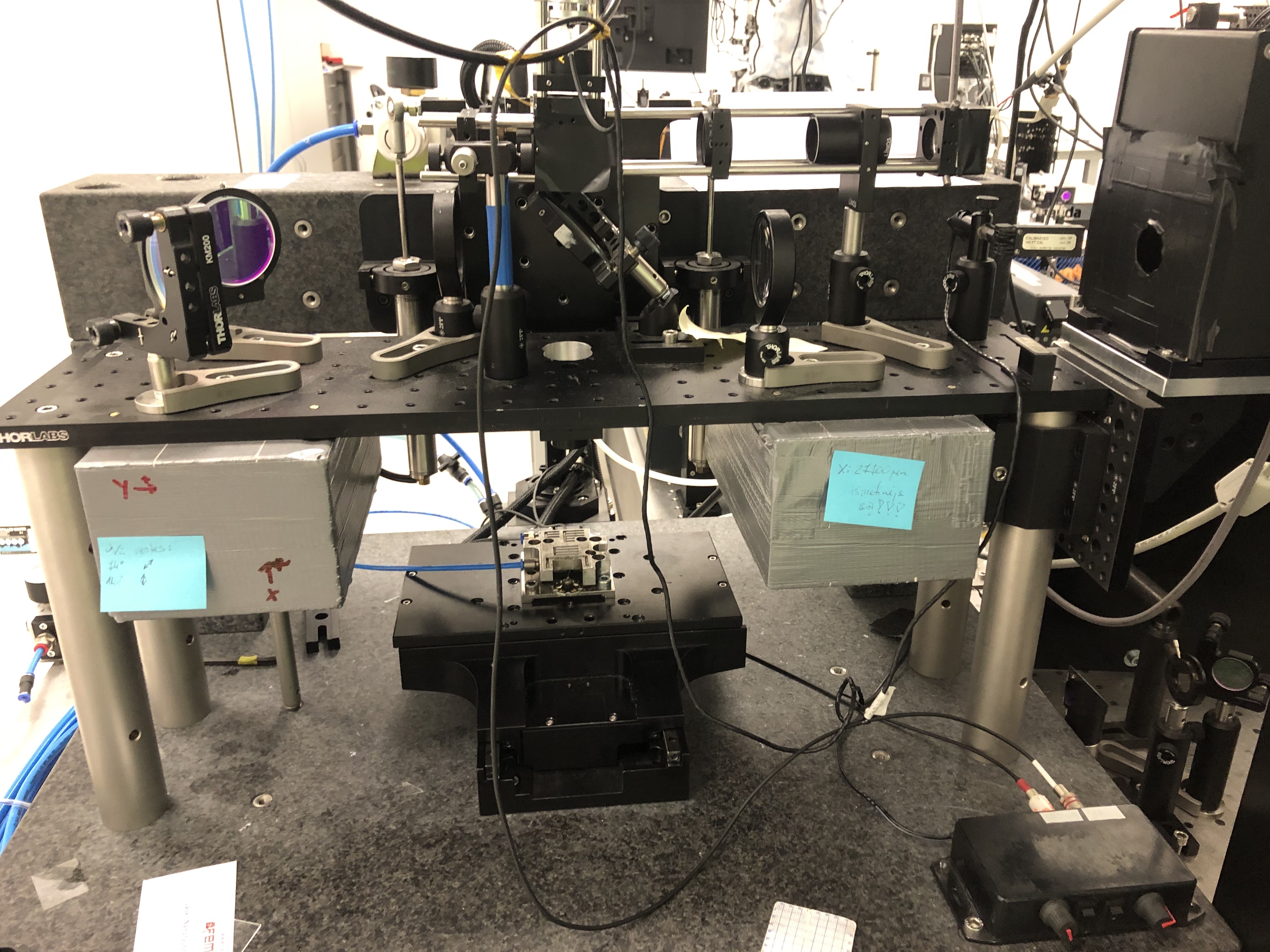

Writing/imaging part of the Femtolab-based DLW system
Image 2

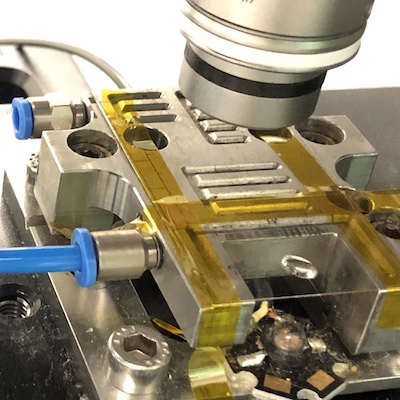

SZ2080 drop on a slide, ready for writing
Image 2

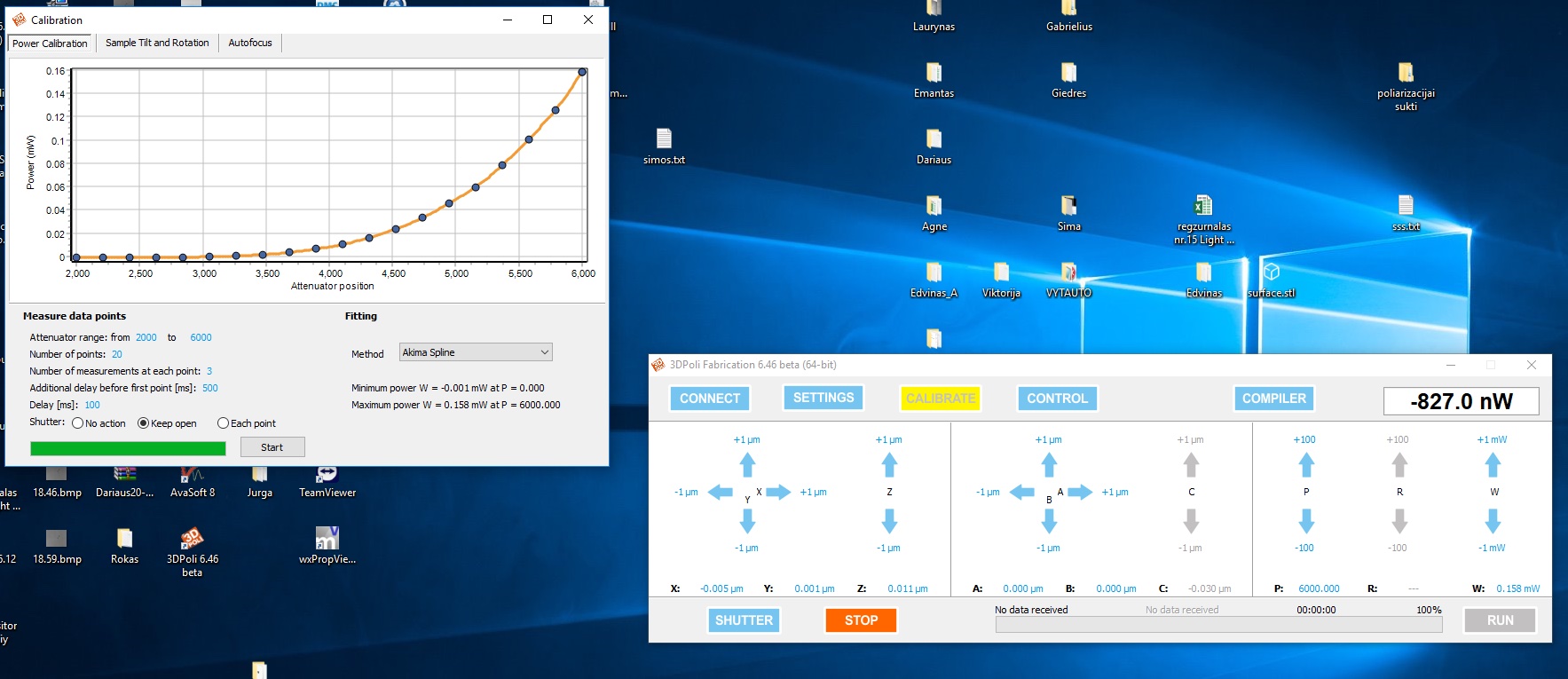

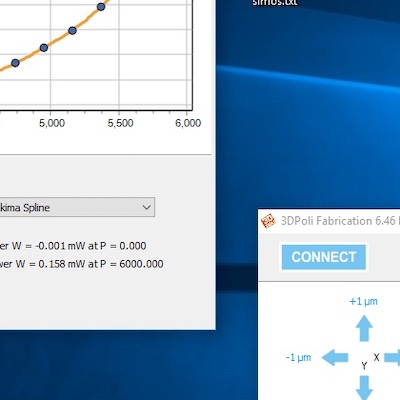

3D Poli Fabrication GUI + power calibraiton screen
Image 2

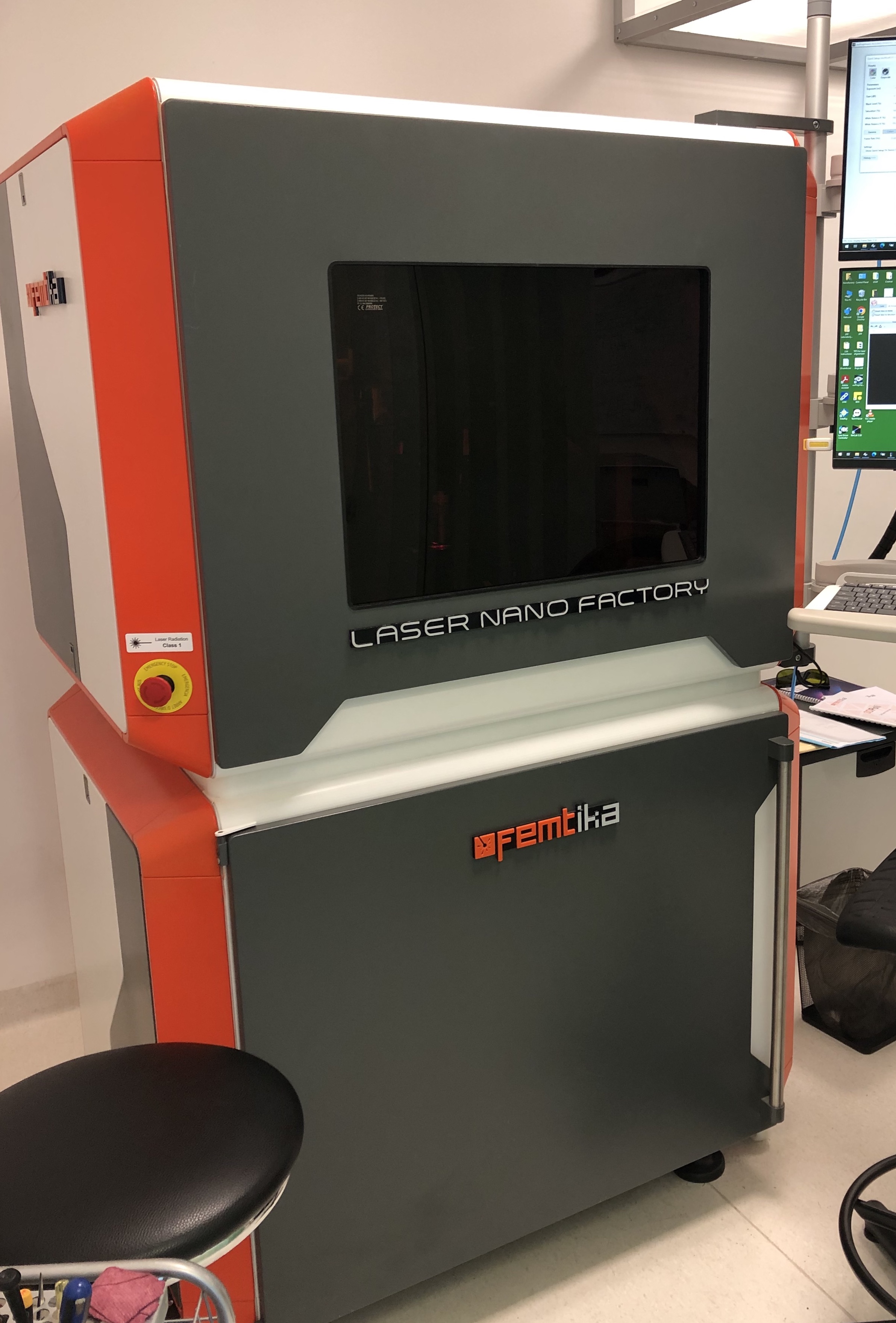

Nanofactory workstation (Femtika)
Image 2

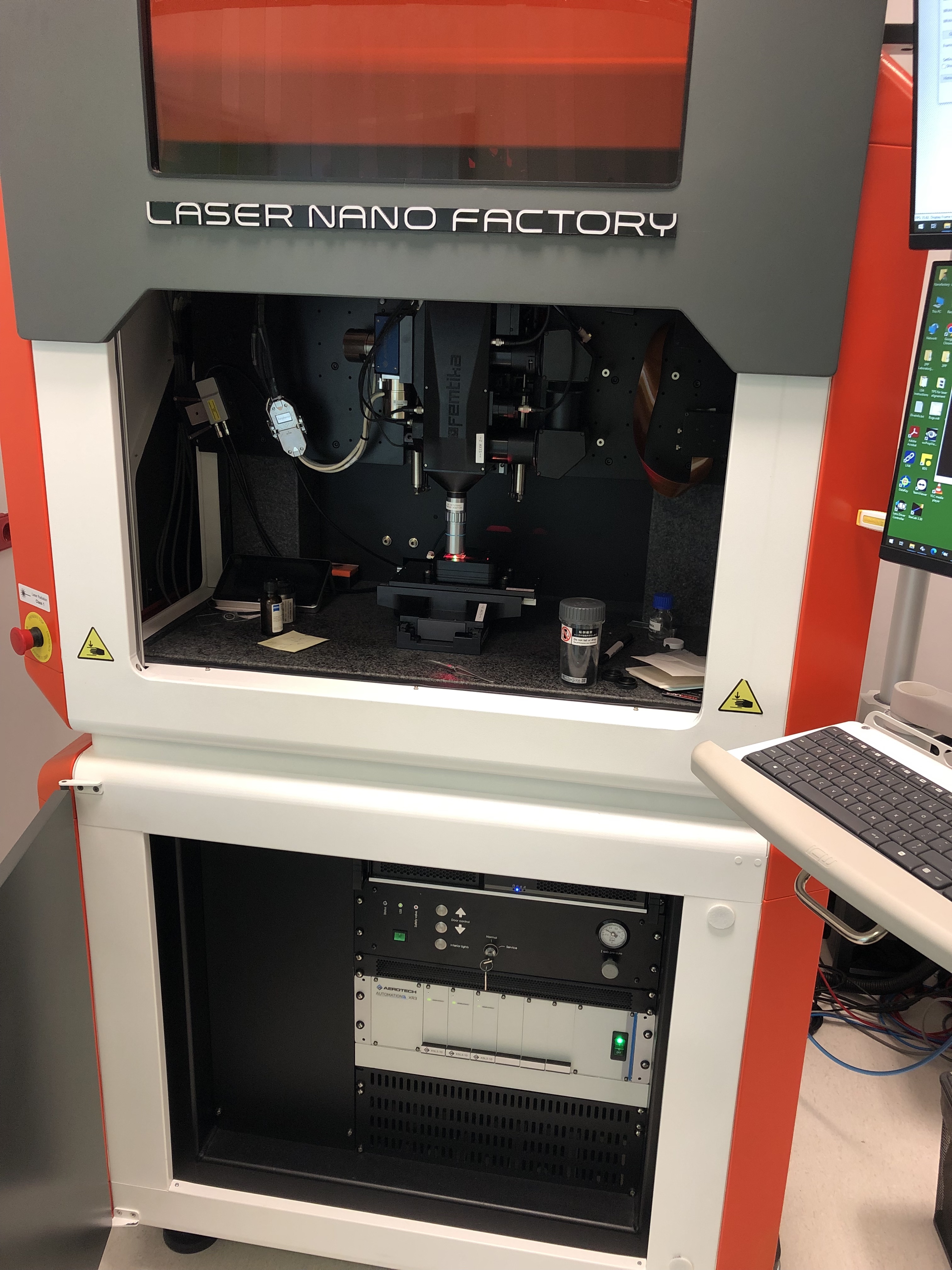

Nanofactory inside
Image 2

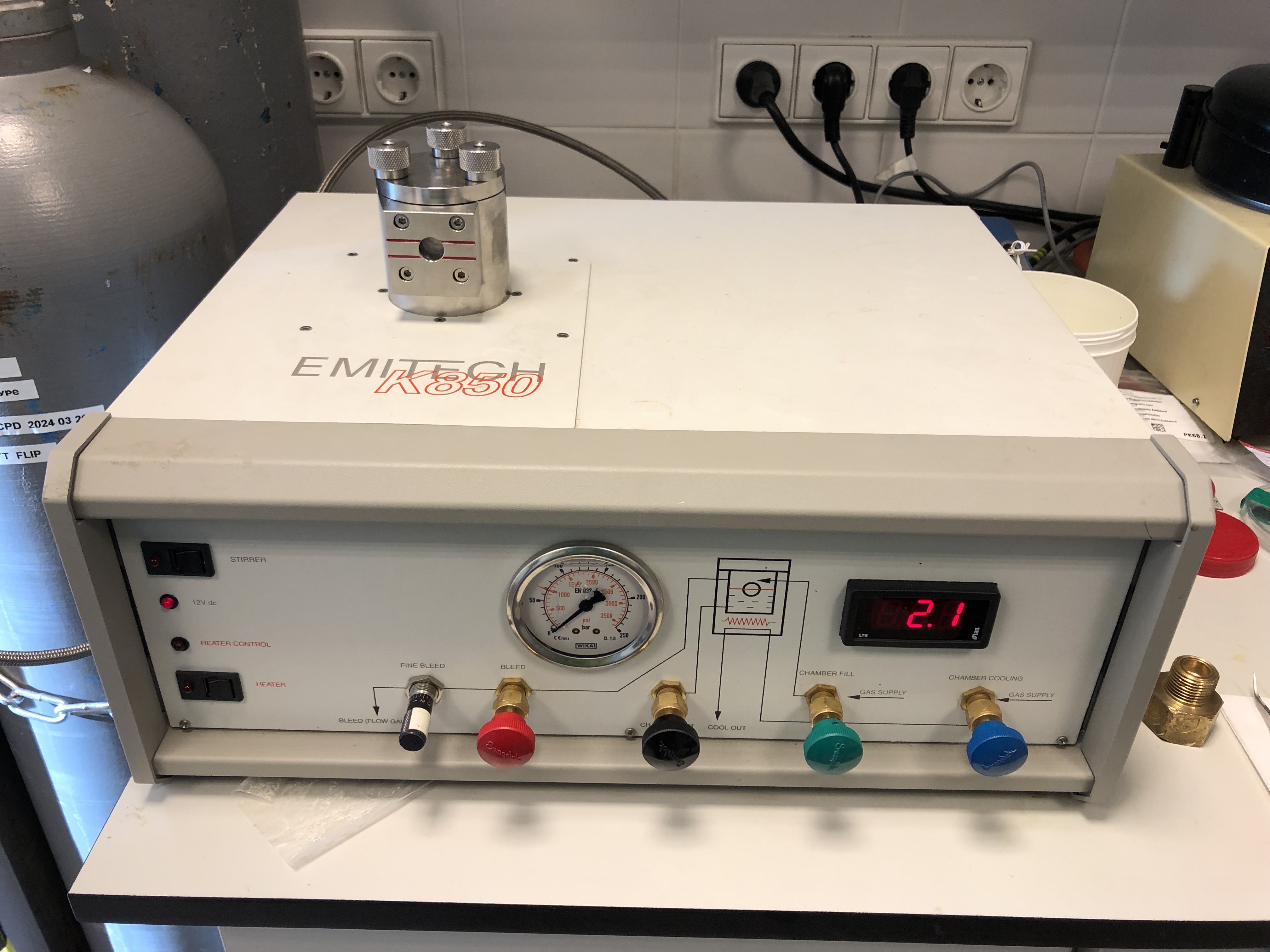

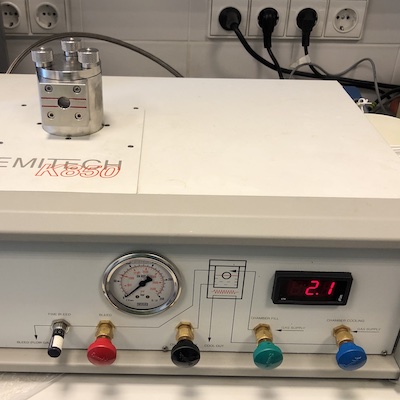

Critical point drying (CPD) apparatus
Image 2

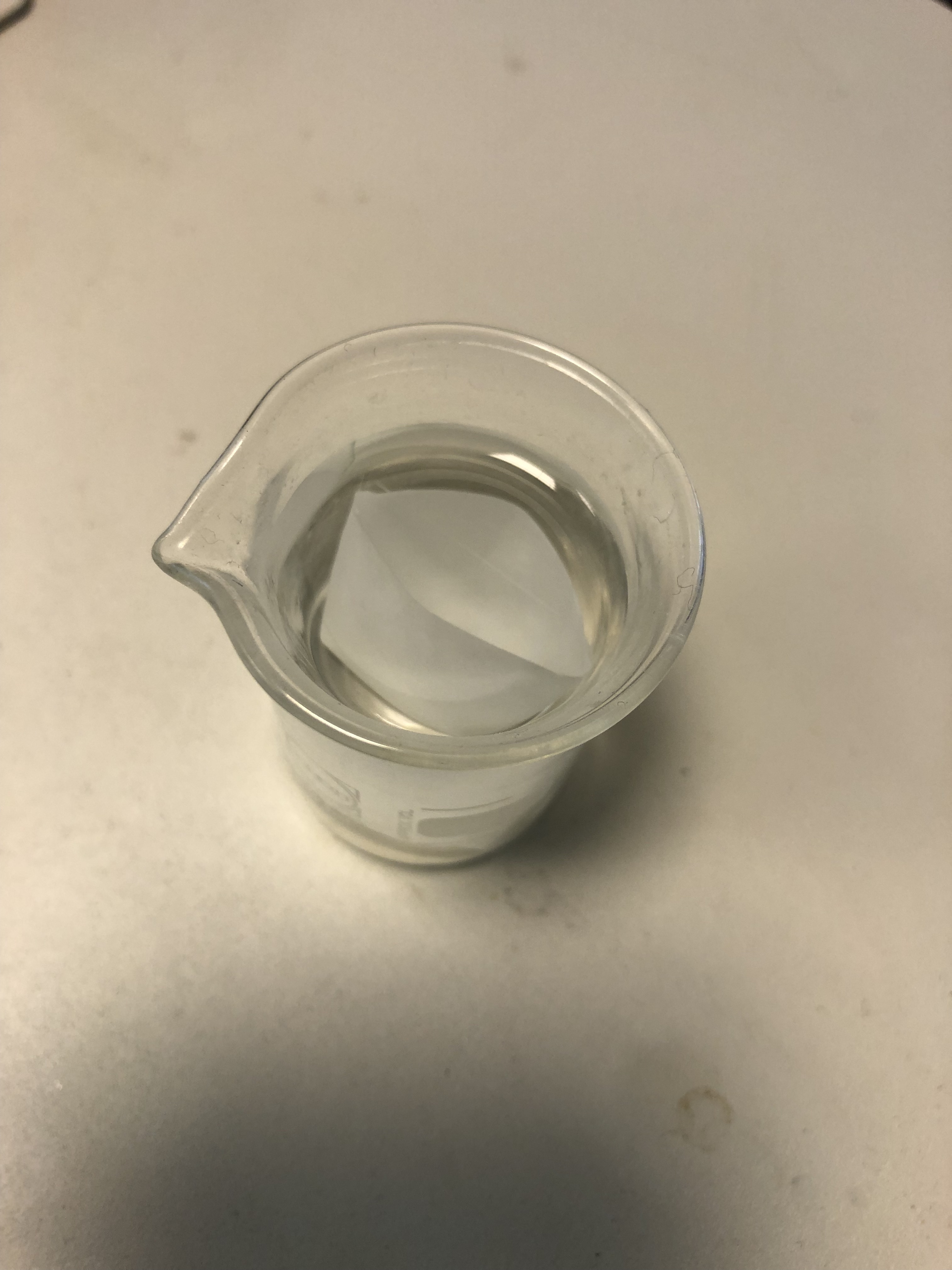

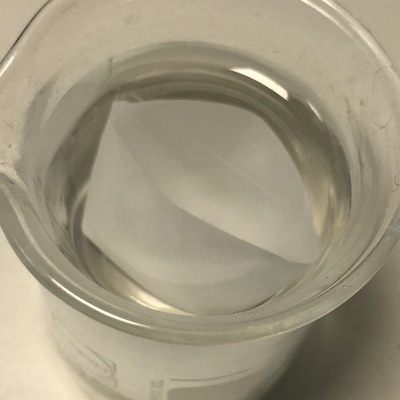

Protective paper pouch with a sample slide in ethanol, before CPD
Image 2

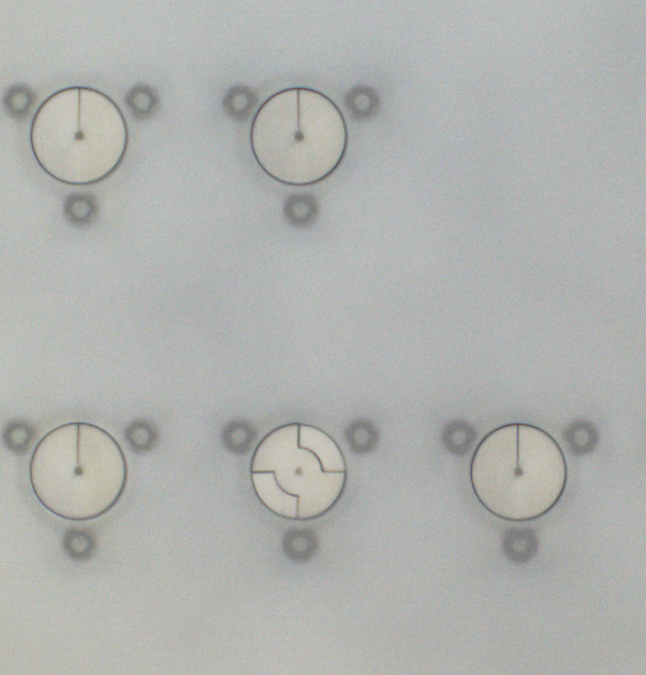

Micropendulums under optical microscope
Image 2

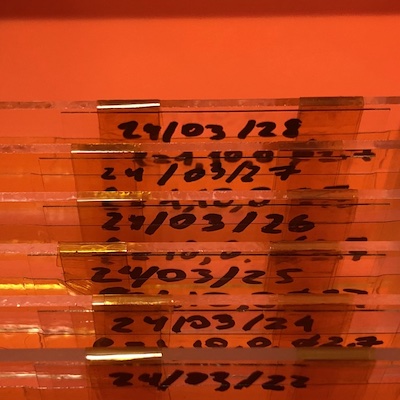

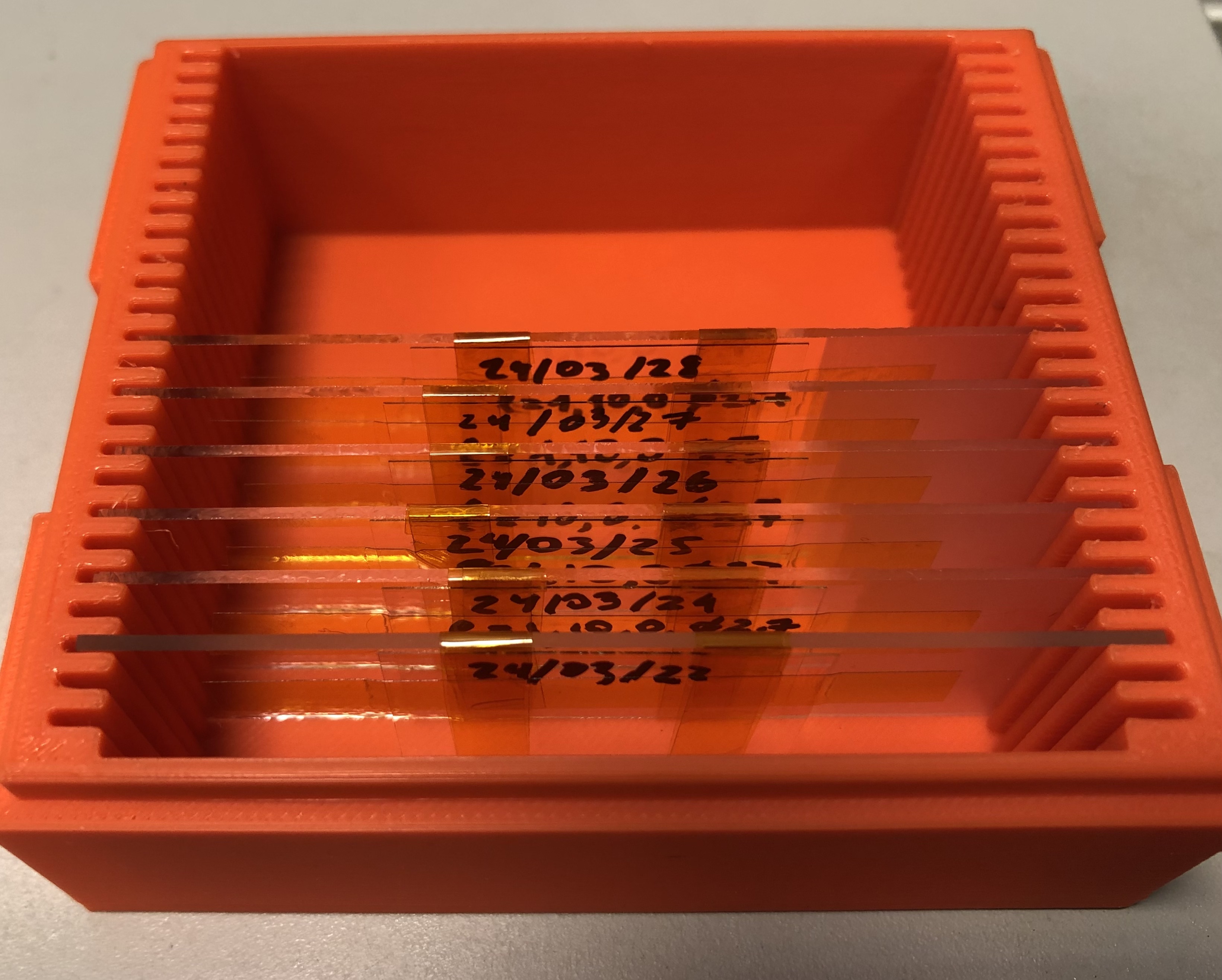

New batch of samples, March 2024

Optomechanical experiment (LOMA, France)

Image 2

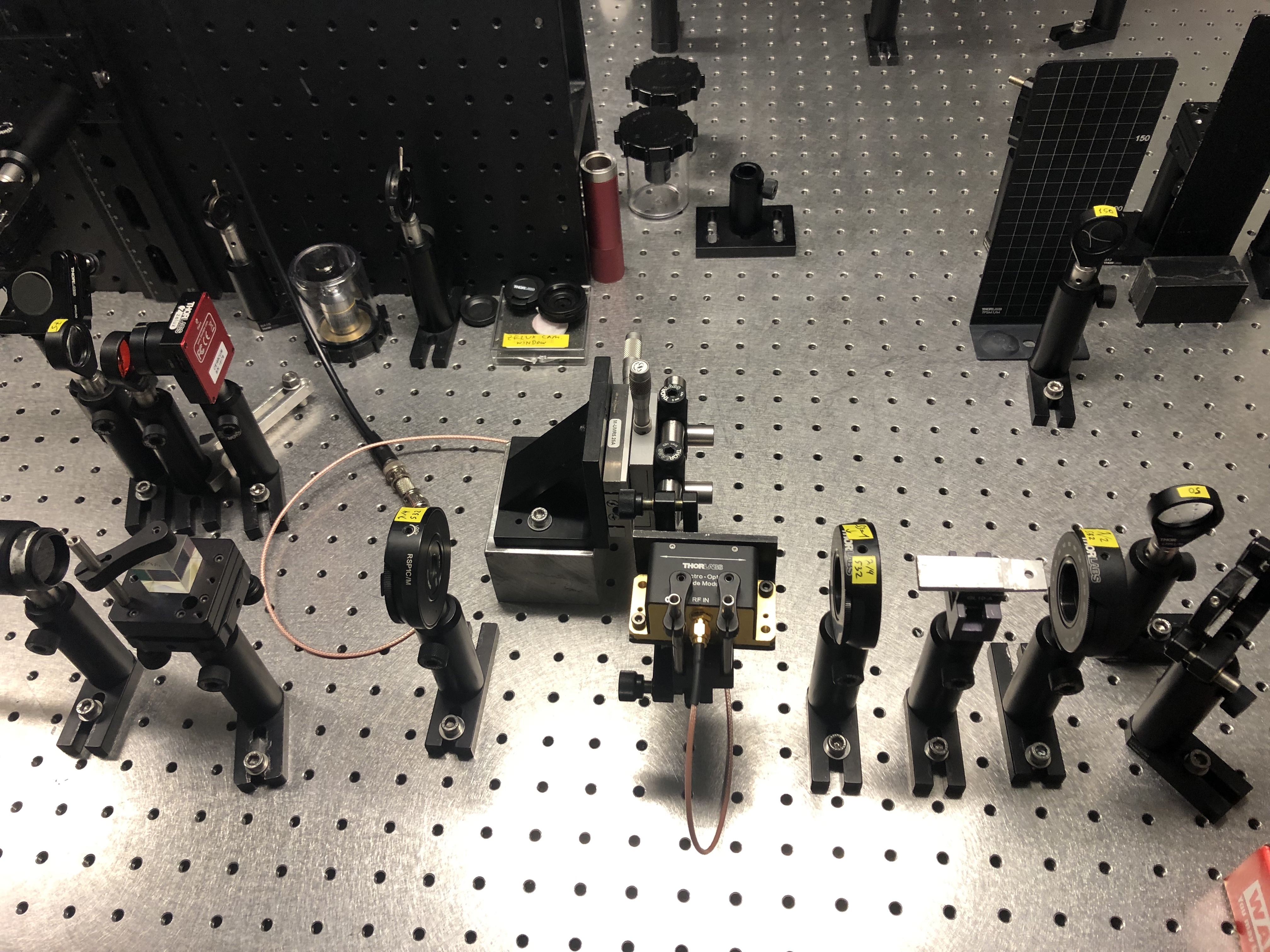

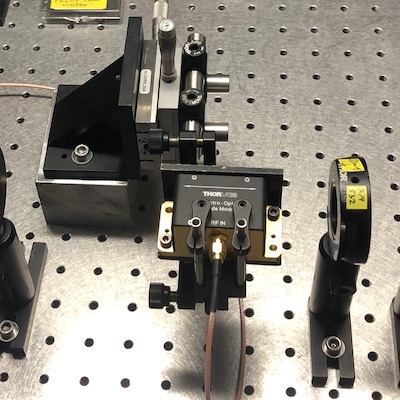

Setting up the electro-optical modulator (EOM) for the pump beam
Image 2

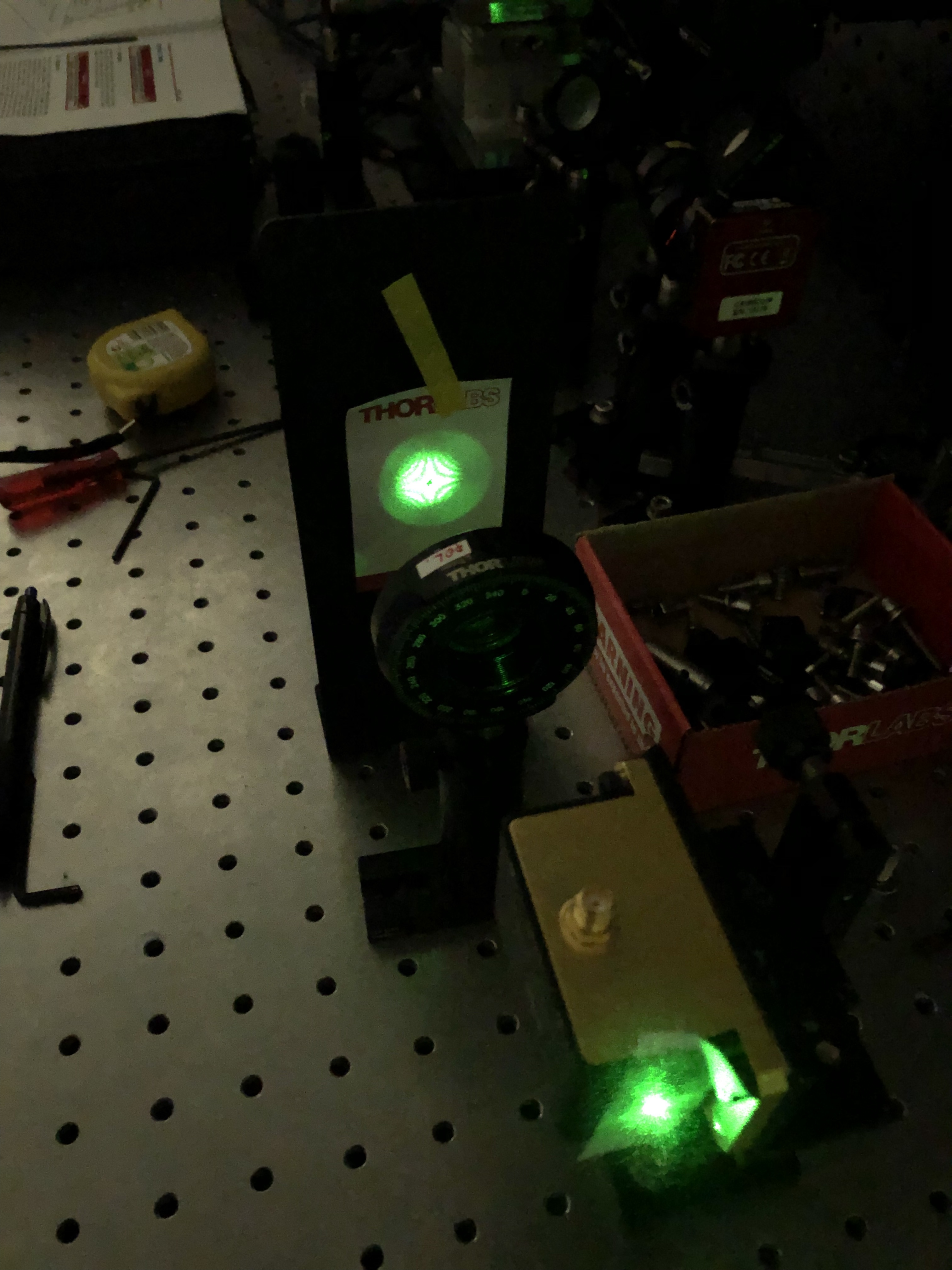

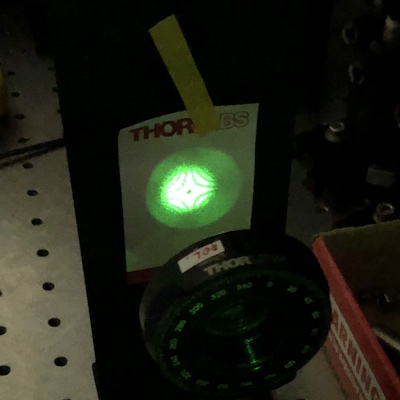

EOM alignment using scotch tape
Image 2

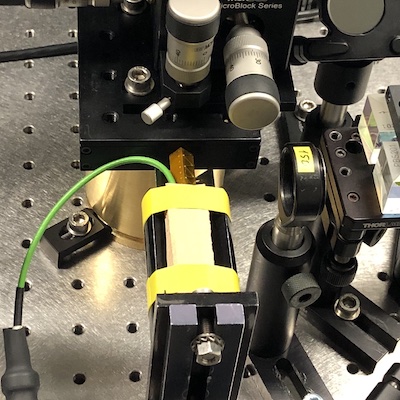

Piezo stack for precise positioning of the sample and QPD calibration
Image 2

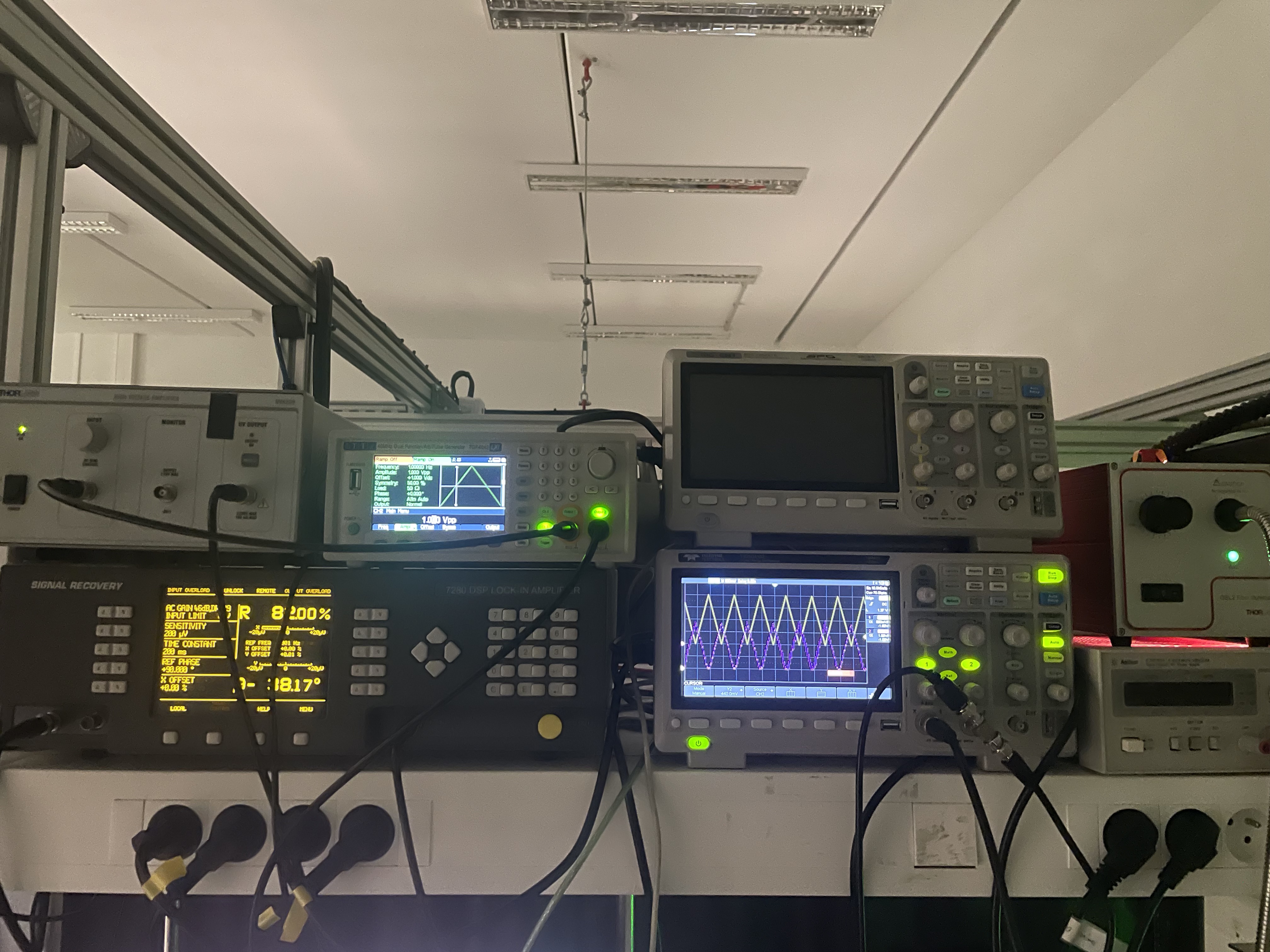

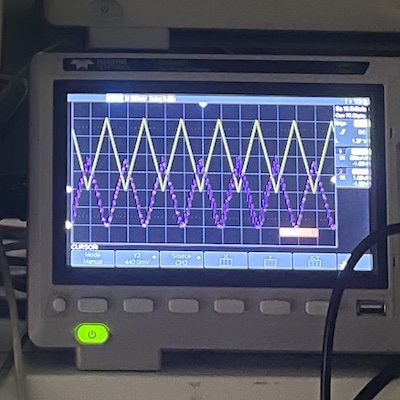

Calibrating the QPD via piezo actuation
Image 2

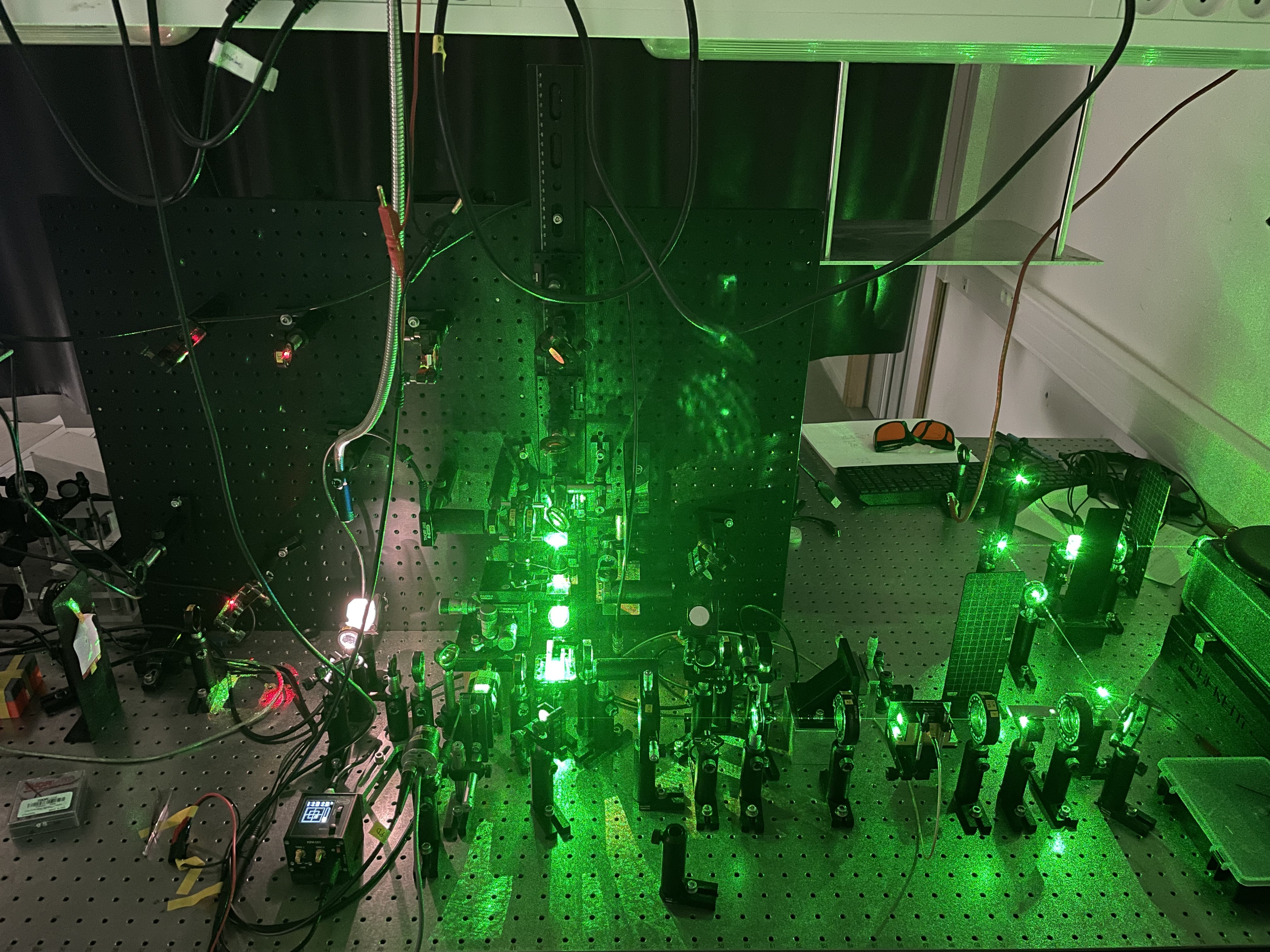

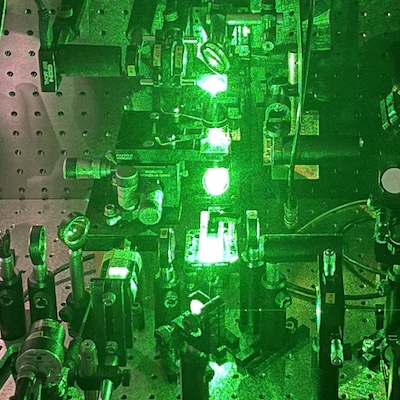

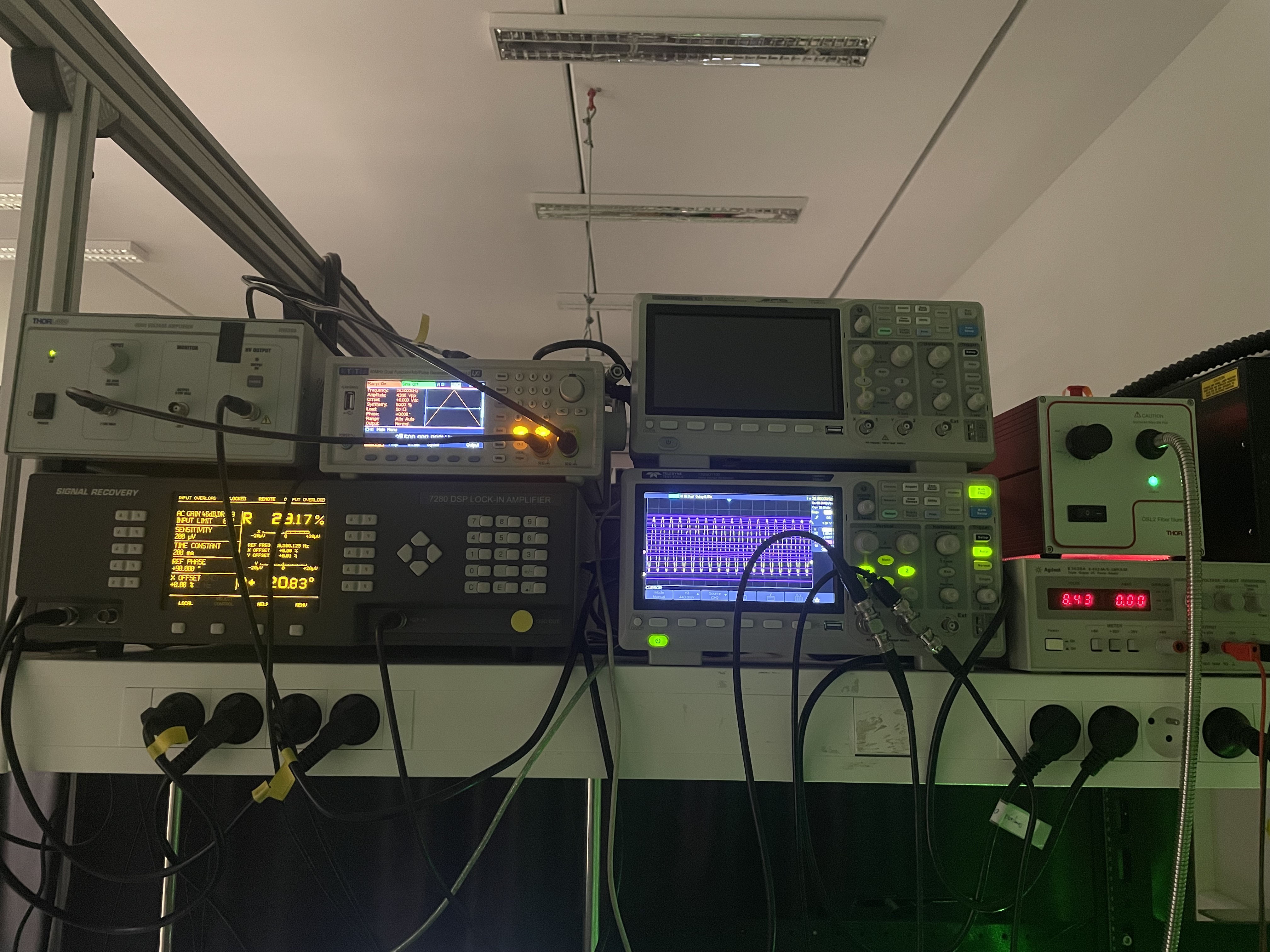

Pump-probe optomechanical system in action
Image 2

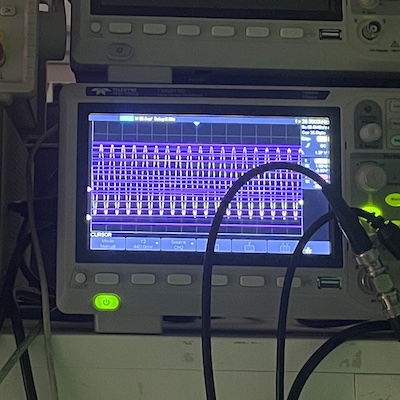

Typical signal on oscilloscope (purple lines): weak modulation and strong jumps due to low-frequency noise
Image 2

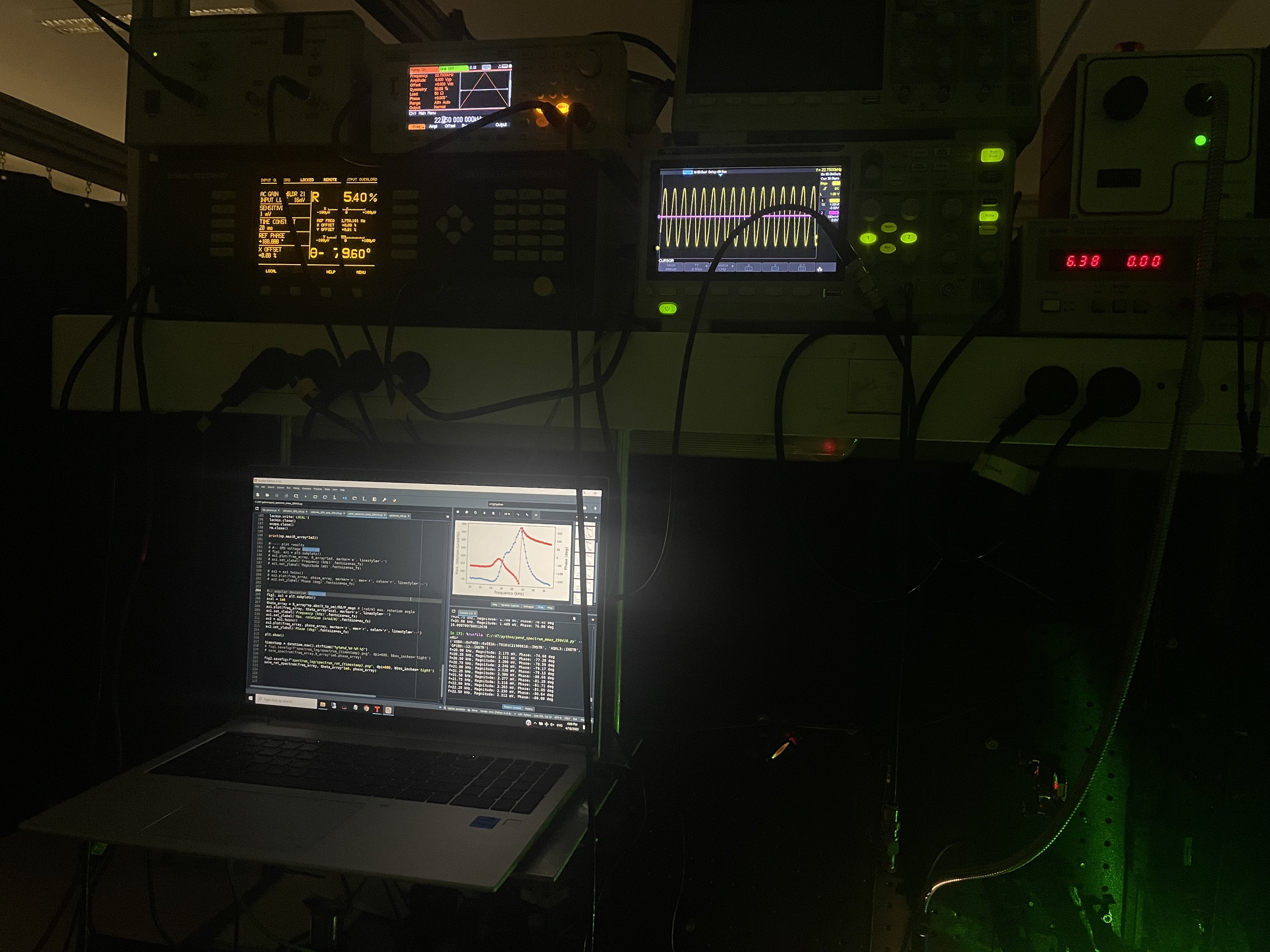

Automatic acquisition of a micropendulum spectra
